PARTS CATALOG


The following pages show the various models of Vita Spa controls built by Consumer Engineering Inc. between the years of 1988 and 2009.  All of the parts used in  a model year are all grouped together to eliminate confusion about what works together.

In most cases, parts from newer model years will work just fine as substitutes for older parts, because the newer parts were designed to be backwards compatible.  Of course, all of the newer features will not be available unless the entire system is replaced, but the original features will still work the same.

Instead of providing a separate price list, the suggested retail prices are shown with the parts.  It is understood that some retailers may charge more than the suggested retail price when they provide other services to the consumer. Your invoice will reflect your established trade discount, which is the same percentage for all parts.

The systems that  follow are arranged by model, for example, L400, L500, L200, L500, Voyager, Duet, etc., and then they are presented according to the years built.











LX400 SPA CONTROL SYSTEM
1993-1997


        l400

  LX400 SPASIDE (HI-BEZEL ONLY)
P/N LX-LC400
DISCONTINUED

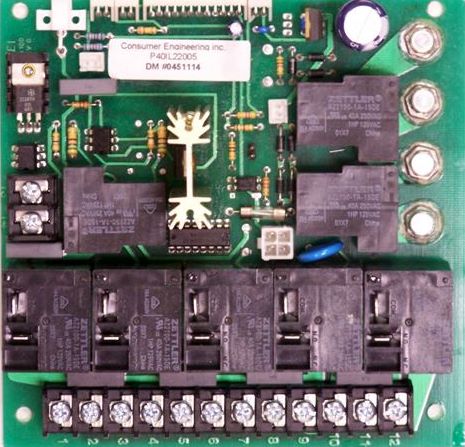

      400 PB

LX400 CIRCUIT BOARD
P/N 0451114

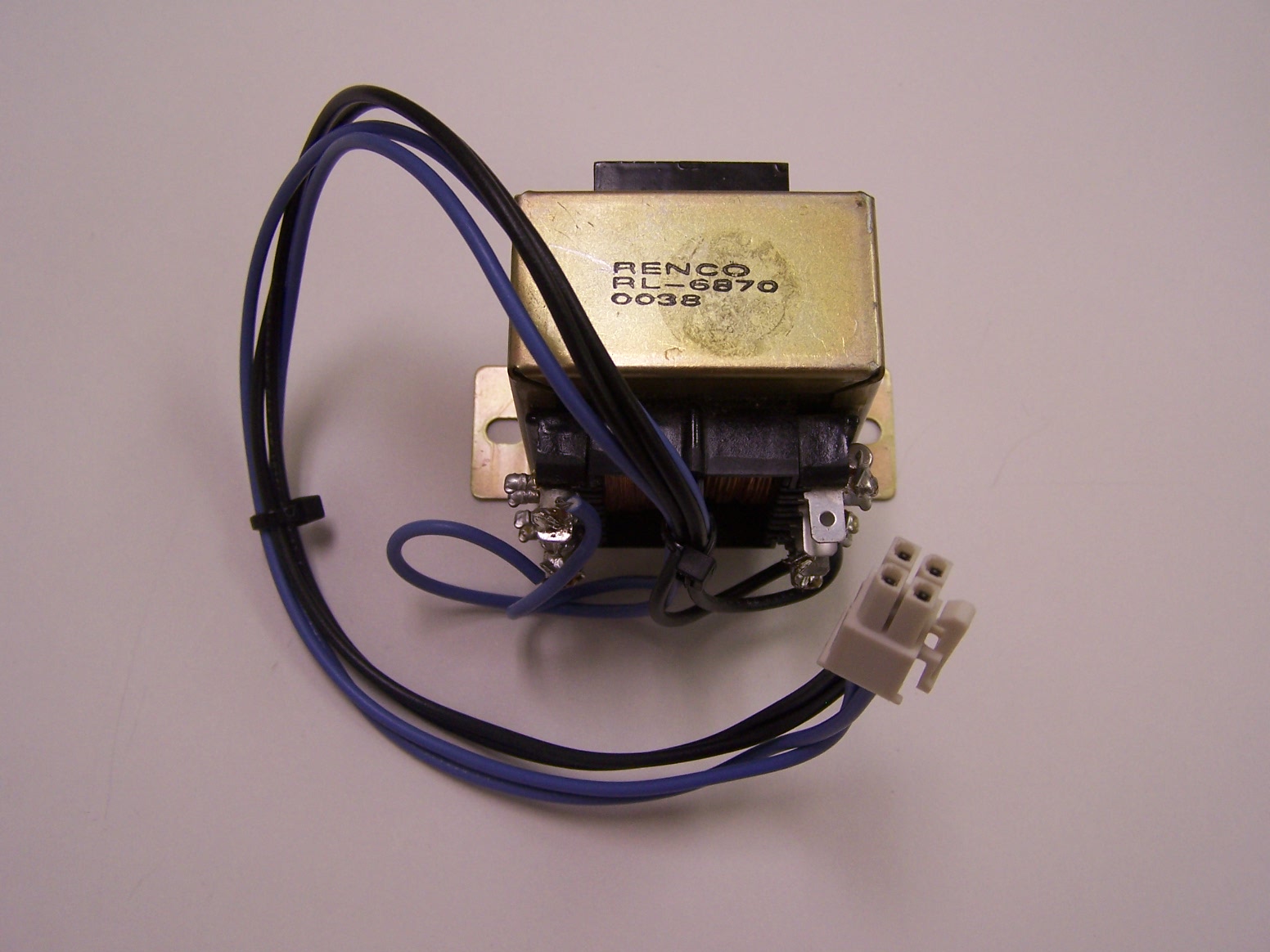

    400 XFORMER

 LX400 TRANSFORMER
 P/N LX-LT400

    		              400 HS

LX400 HEATER SENSOR
P/N 0451116
      400 WS

LX400 WATER SENSOR
P/N 0451115










L500/L700 SPA CONTROL SYSTEM
1998

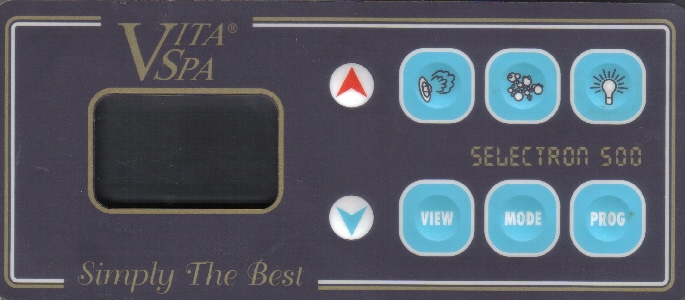

BLACK L500

LX-LC500 SPASIDE
USE  P/N 0460087



  BLACK REMOTE

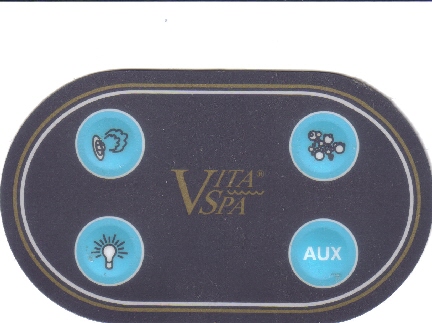

 L500 REMOTE
USE P/N LX-LR500


  500pb

  L500/LC500 CIRCUIT BOARD
P/N 0460084

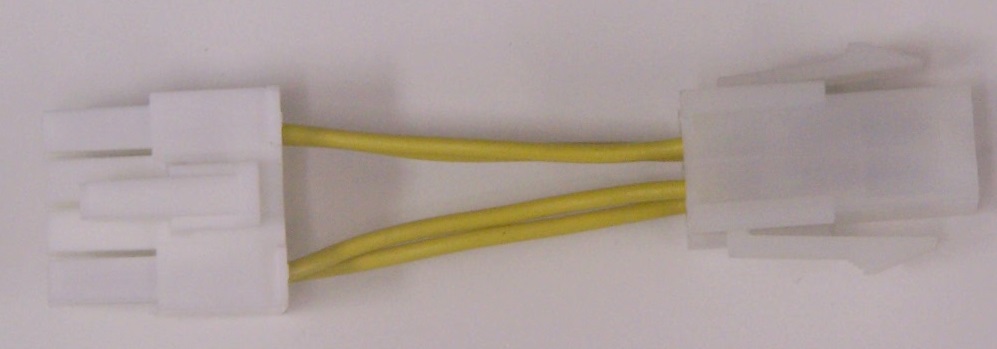

 8 TO 4

4 PIN TRANSFORMER TO
8 PIN BOARD ADAPTOR
P/N 0442207
   400 TRANS

 L500 TRANSFORMER (4-PIN)
P/N LX-LT500  (240V)
P/N LX-LT501  (120V)









  4 TO 8

8 PIN TRANSFORMER TO
4 PIN BOARD ADAPTOR
P/N 0442208

 500 HS

 HEATER SENSOR (2 FT.)
P/N 0451126
   WS

WATER SENSOR (7 FT.)
  P/N LX-LW500











L500/L700 SPA CONTROL SYSTEM
1999-2002

BLUE L500

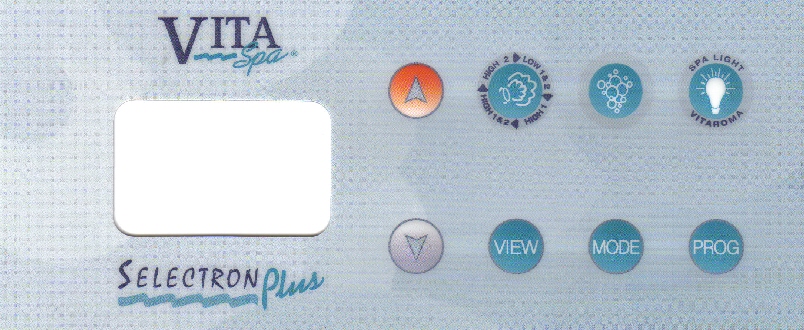

 L/LC500 SPASIDE
 P/N 0460087

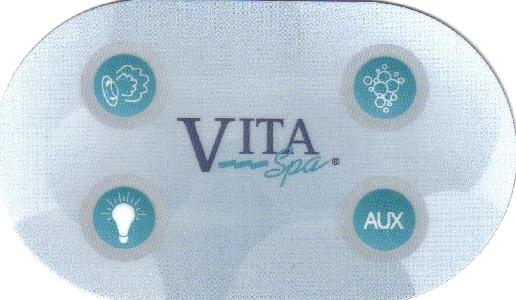

BLUE REMOTE

L/LC500 REMOTE  (4 BUTTON)
P/N LX-LR500

500 pb

L500/LC500 CIRCUIT BOARD
P/N 0460084

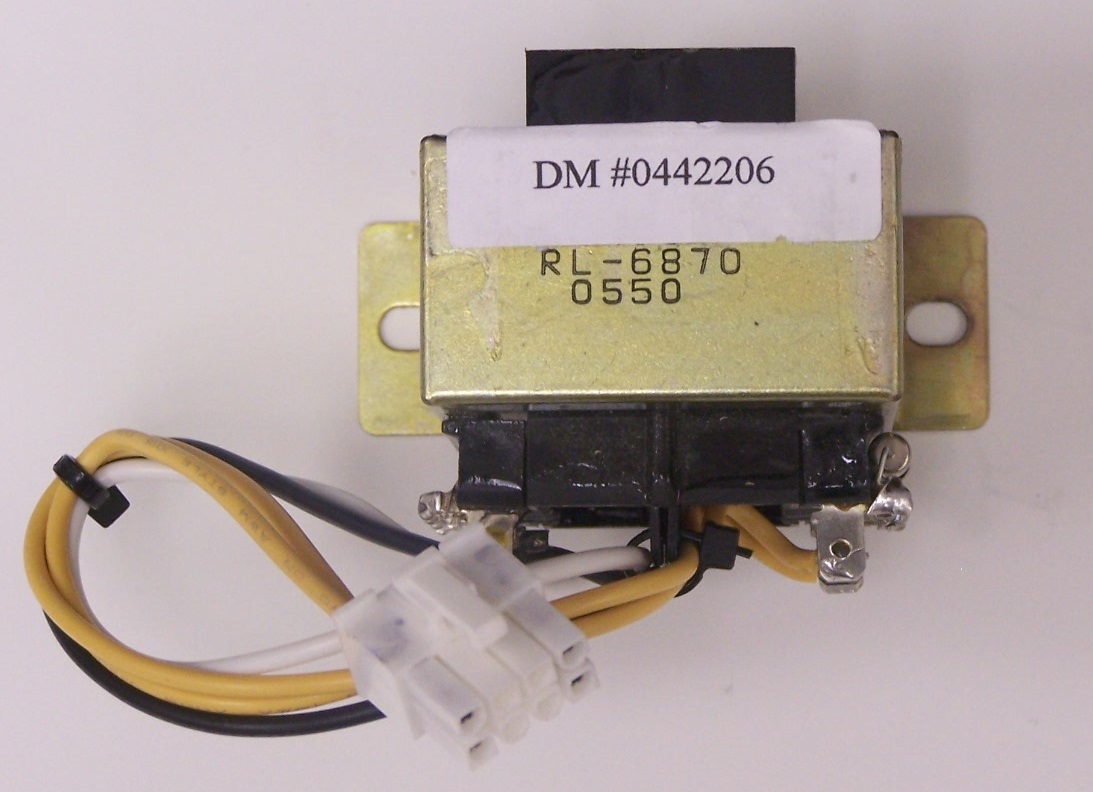

8 PIN XFORMER

L500 TRANSFORMER (8 PIN)
P/N 0442206  (240V)
P/N 0442205  (120V)


500 HS

HEATER SENSOR (2 FT.)
P/N 0451126

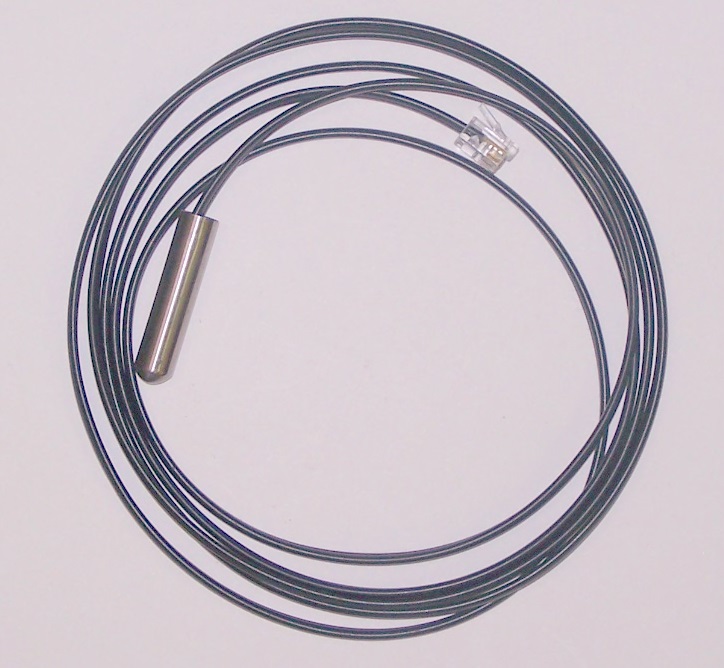

WATER SENSOR

WATER SENSOR (7 FT.)
P/N LX-LW500
COMBO

 COMBO CIRCUIT BOARD
P/N 0460100
USE P/N 0460127
CURRENT

CURRENT SENSOR
P/N 0460088






L700C SPA CONTROL SYSTEM
2003-2006




DISC SS

DISC SPASIDE
P/N 0460074  (2 PUMPS)
P/N 0460078  (3 PUMPS)

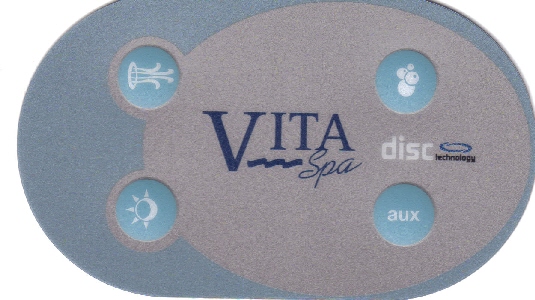

DISC 4BUTTON REMOTE

DISC REMOTE (2 PUMPS)
  P/N 0460076

DISC 6 BUTTON REMOTE

DISC REMOTE  (3 PUMPS)
P/N 0460076-L05




REFLECTIONS DISC SPASIDE

REFLECTIONS SPASIDE
 P/N 0460124-05

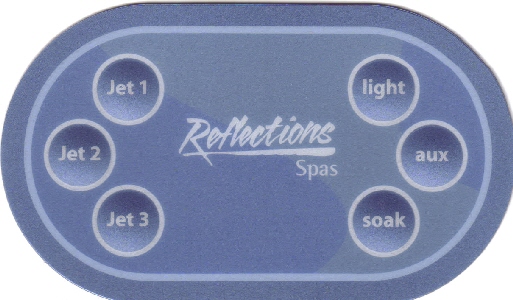

6 BUTTON REF

 REFLECTIONS  REMOTE  (3 PUMPS)
P/N  0460076-R05

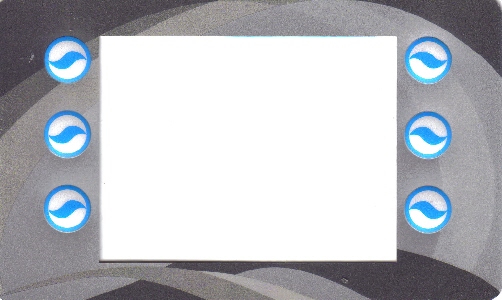

BW GRAPHIC

GRAPHICS SPASIDE (B/W)
  NO LONGER AVAILABLE
USE P/N 0454007-V05D











700 COLOR

GRAPHIC SPASIDE  (B/W)
NO LONGER AVAILABLE
USE P/N 0454007-V05D


COMBO

 COMBO CIRCUIT BOARD
 P/N 0460100
USE P/N 0460127


PG1 PB

GRAPHICS  CIRCUIT BOARD (PG1)
 P/N 0460127
8 PIN XFORMER

L500 TRANSFORMER (8 PIN)
P/N 0442206  (240V)
P/N 0442205  (120V)
500 HS

HEATER SENSOR (2 FT.)
P/N 0451126
WATER SENSOR

WATER SENSOR (7 FT.)
P/N LX-LW500
CURRENT

CURRENT SENSOR
P/N 0460088

   ORIG STEREO BOARD

STEREO BOARD
P/N 0453132

  FIRST STEREO XFORM

STEREO TRANSFORMER (10A)
P/N 0453133

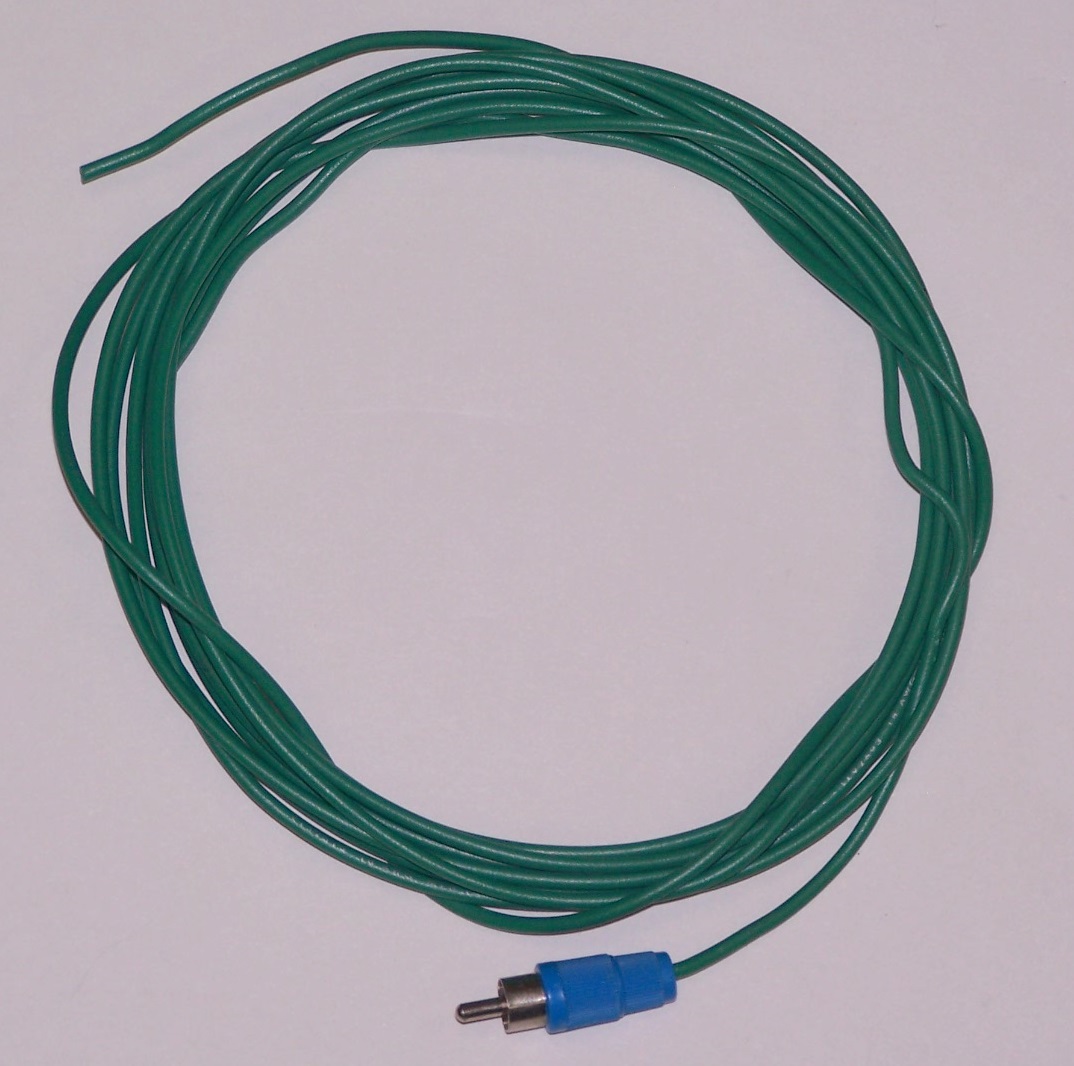

 ANT

STEREO ANTENNA
P/N 0453135

DIGI BOARD

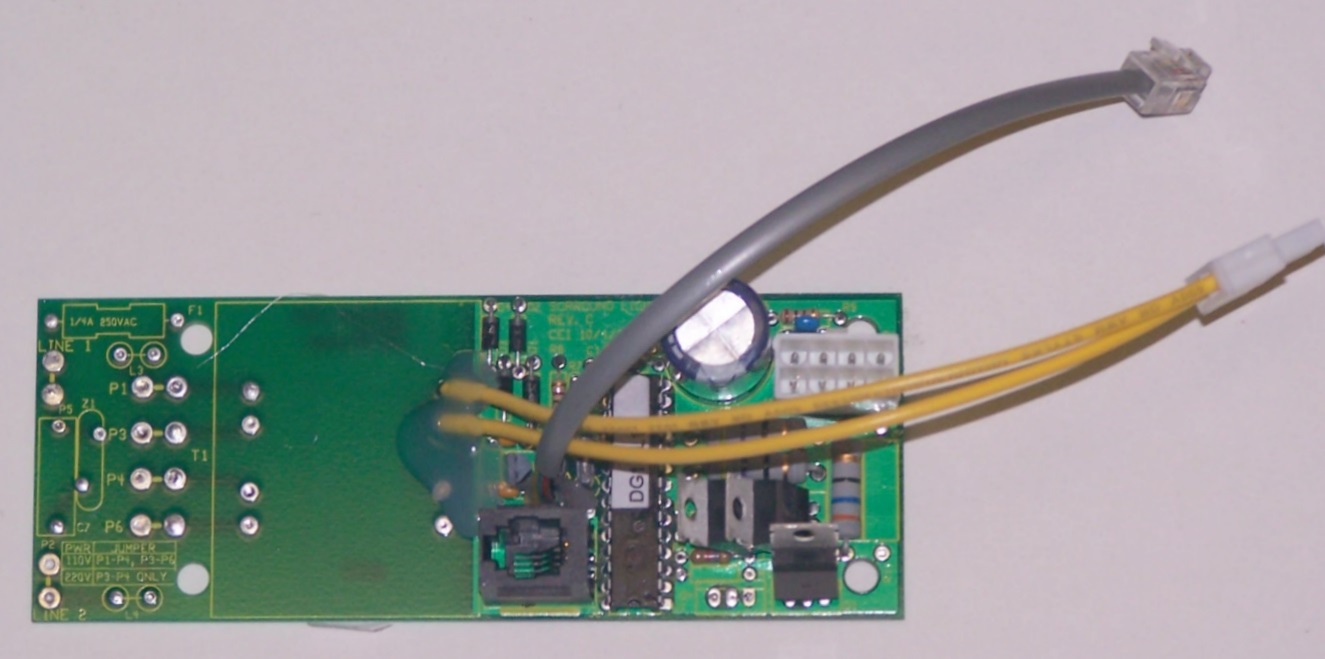

DIGI LIGHT BOARD II
P/N 0451155











ORIG UNDER

SPECTRA-GLO
P/N 0441015

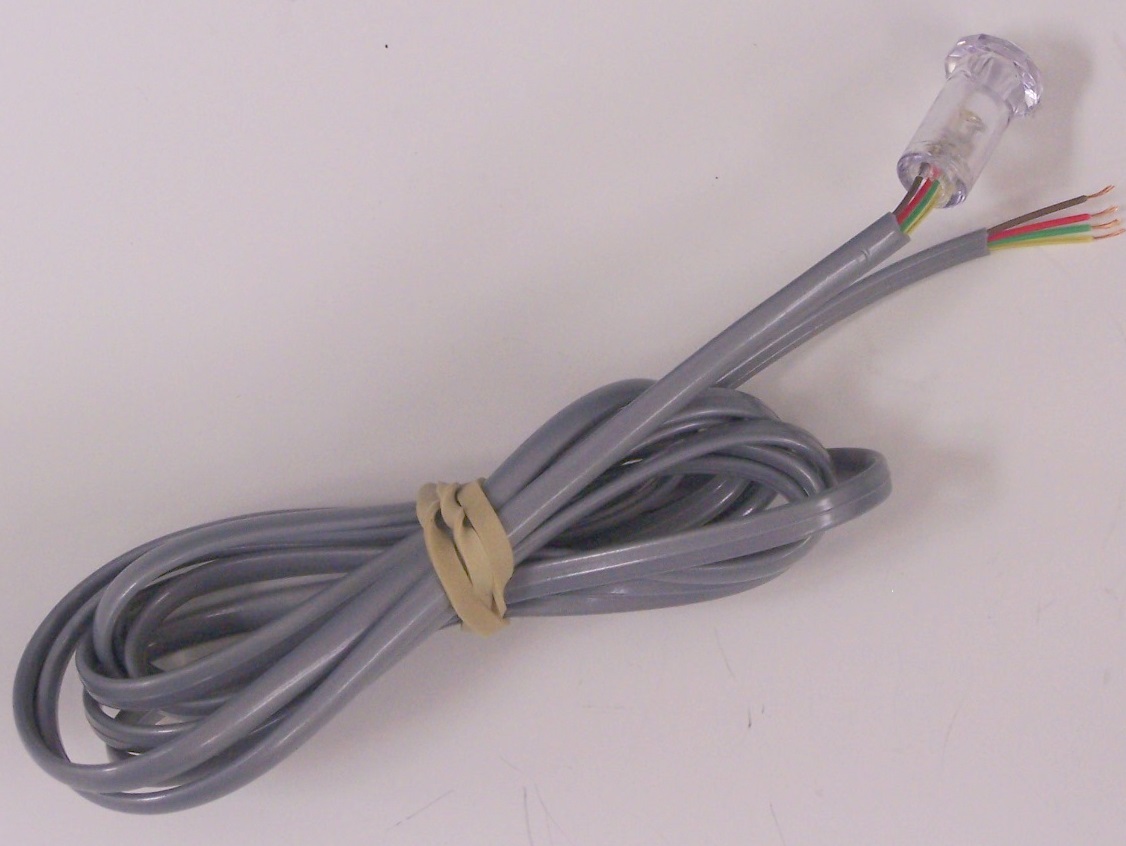

SINGLE LED

DIGI LIGHT LENS/WIRE
P/N 0441026
2005OZ

OZONATOR (J&J MINI PLUG)
P/N 0470129-1 (240V)
P/N 0470130-1 (120V)











DC700 SPA CONTROL SYSTEM (ICS)
2007

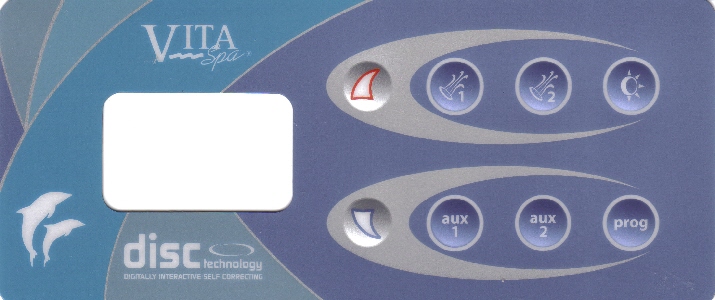

ICS 8 BUTT

VITA SPASIDE  (ICS PACK)
 P/N 0454007-V05D  (5 FT.)
DC700R

REFLECTIONS SPASIDE  (ICS PACK)
  P/N 0454007-R05D

700 COLOR

COLOR GRAPHICS SPASIDE  (ICS PACK)
NO LONGER AVAILABLE
USE P/N 0454007-V05D


                                                                                                                                                                                                                                                                                                                                                                  FULL ICS BOARD

CIRCUIT BOARD W/STEREO (ICS)
P/N  0460134-RYDS
USE P/N 0454005-DS




                                                                500 HS


HEATER SENSOR (2 FT.)
P/N 0451126
                                                              WATER SENSOR

WATER SENSOR (7 FT.)
P/N LX-LW500
                                                                      CONTROL



CONTROL CARD
P/N 0460013-CTRL
USE P/N 0454002-D





                                                                                                              ICS EXPORT PB

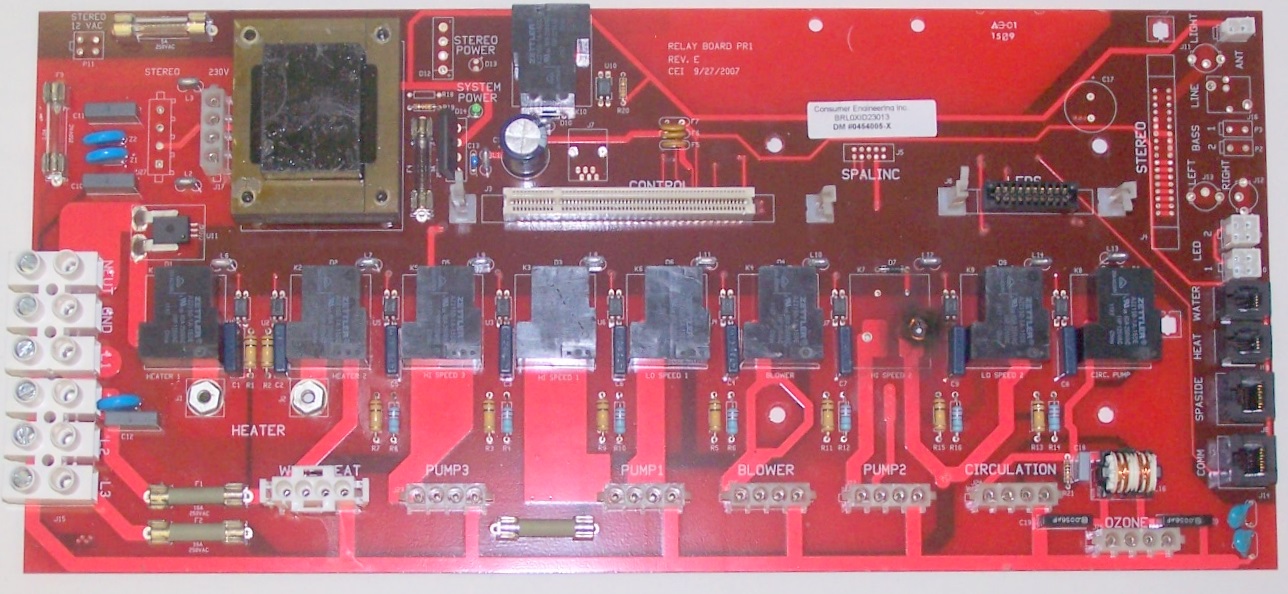

CIRCUIT BOARD W/O STEREO - EXPORT (ICS)
P/N 0460134-RYDX
USE P/N 0454005-X

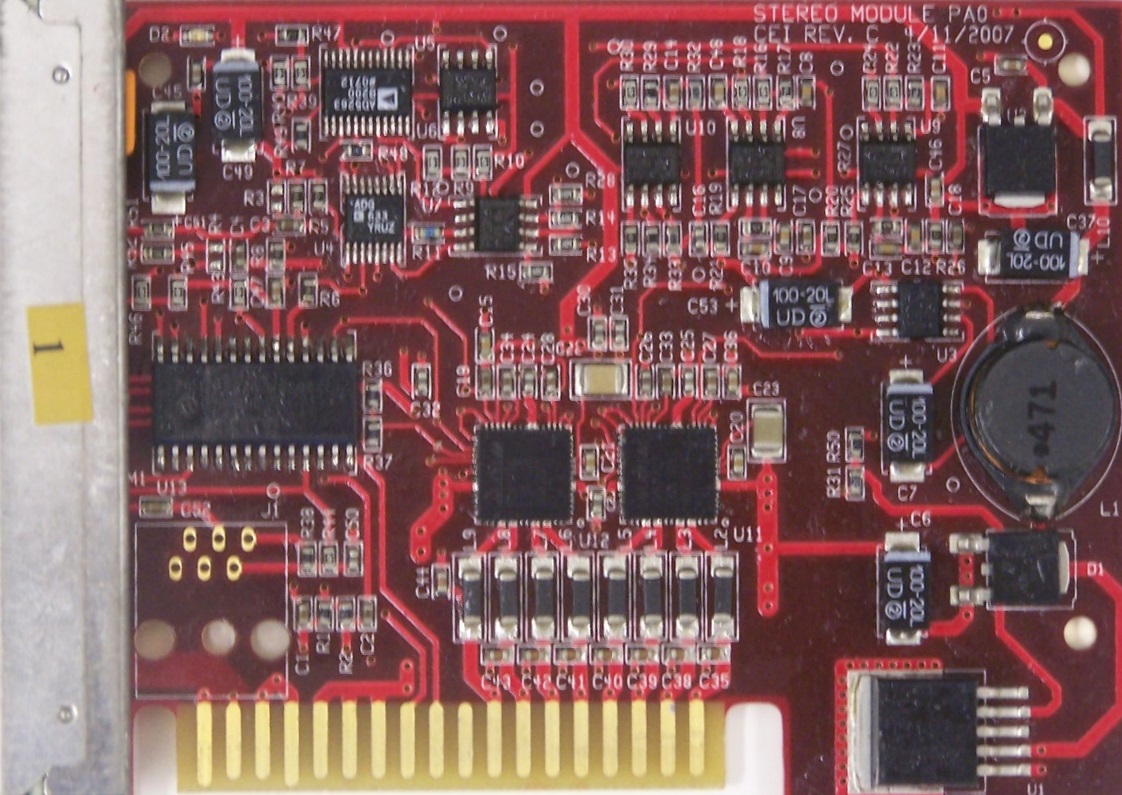

                                  STEREO CARD

STEREO CARD
P/N 0451159-D
USE 0454001-D
                  STEREO XFORM

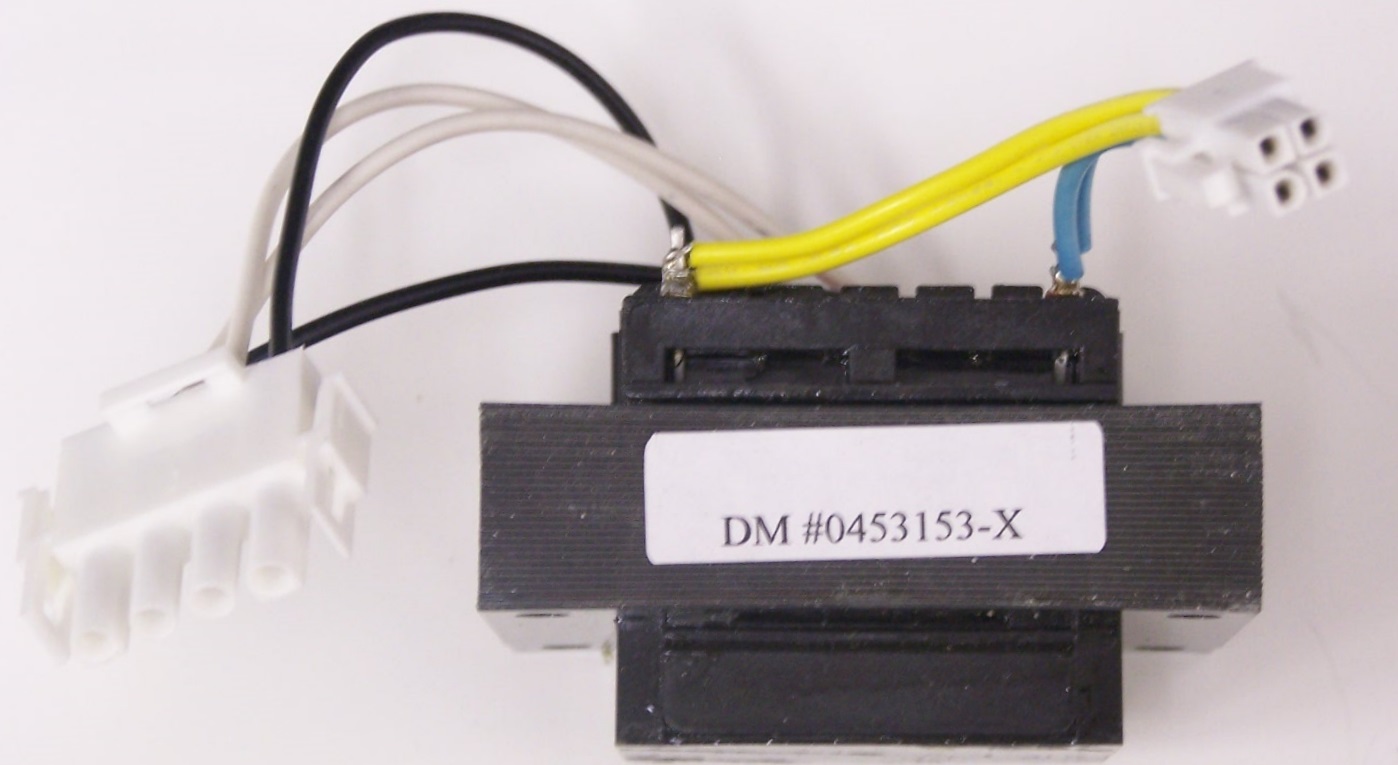

STEREO TRANSFORMER
P/N  0453153
                                                            ANT

STEREO ANTENNA
P/N 0453135

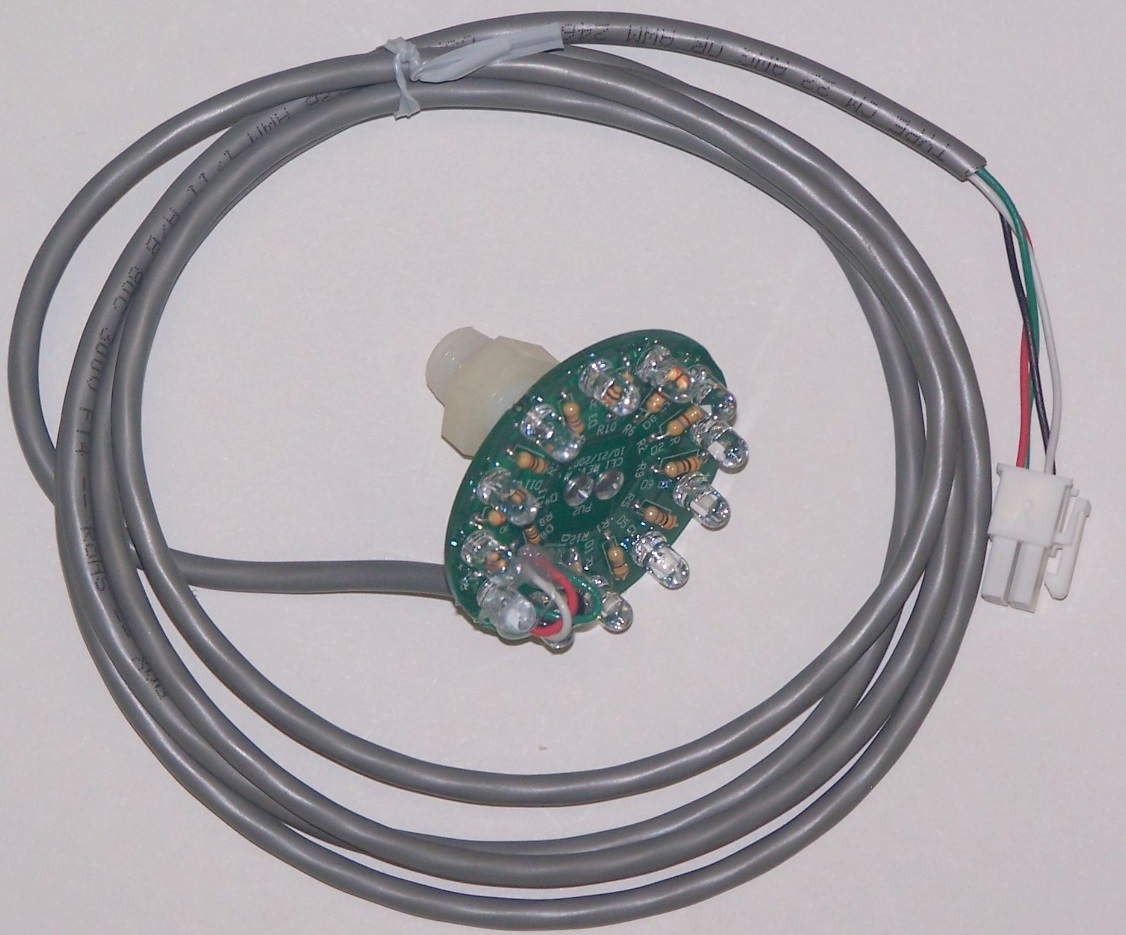

ICS UNDER

MAIN LIGHT (2 IN.)
P/N 0441030
     SINGLE LED

DIGI-LIGHT LENS/WIRE  (4 FT.)
P/N 0441026


SINGLE LED

DIGI-LIGHT LENS/WIRE (6 FT.)
P/N 0441026- 6



     07LED

DIGI-LIGHT CARD
P/N 0451158

AMP OZ

OZONATOR (AMP PLUG)
P/N 0470132-1  (240V)
P/N 0470133-1 (120V)











DC700 SPA CONTROL SYSTEM (ICS)
2008-2009

ICS 8 BUTT

VITA SPASIDE  (ICS PACK)
 P/N 0454007-V05D  (5 FT.)
DC700R

REFLECTIONS SPASIDE  (ICS PACK)
  P/N 0454007-R05D

700 COLOR

COLOR GRAPHICS SPASIDE  (ICS PACK)
NO LONGER AVAILABLE
USE P/N 0454007-V05D

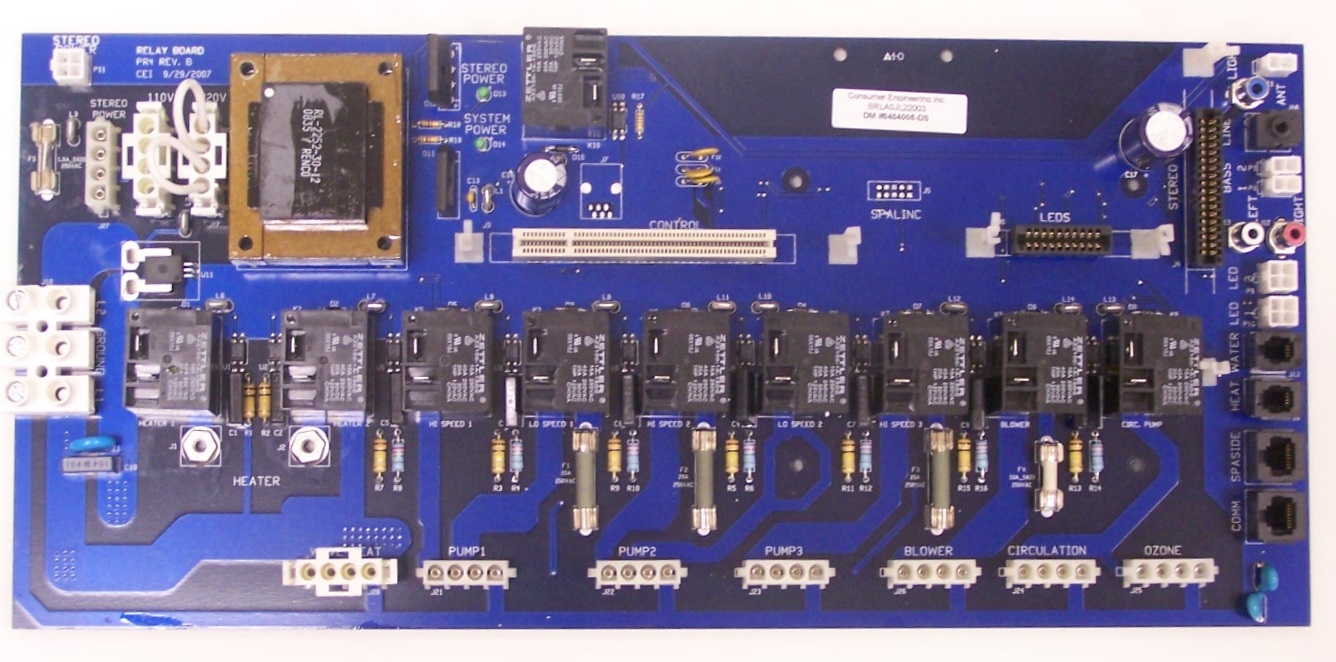

                                                                                                                                                                                                                                                                                                                                                               FULL ICS BOARD

CIRCUIT BOARD W/STEREO (ICS)
 P/N 0454005-DS


                                       500 HS

HEATER SENSOR        (15 IN.)
P/N 0451157
                                                              WATER SENSOR

WATER SENSOR (7 FT.)
P/N LX-LW500






CONTROLCONTROL CARD
 P/N 0454002-D

                                                                                                                                             ICS EXPORT PB

CIRCUIT BOARD W/O STEREO - EXPORT (ICS)
P/N 0454005-X





STEREO CARD

STEREO CARD
P/N 0454001-D



  STEREO XFORM

STEREO TRANSFORMER
P/N  0453153




ANT

STEREO ANTENNA
P/N 0453135

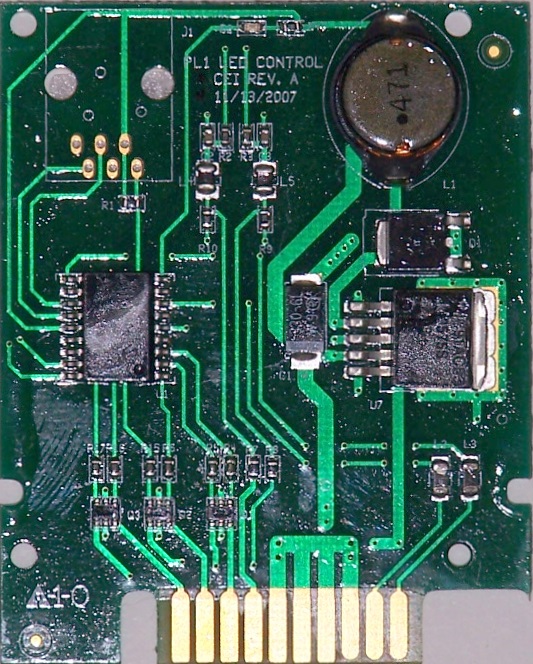

08 LED CARD


DIGI CHROMIUM CARD
P/N 0454004-D


ICS UNDER

MAIN LIGHT (2 IN.)
P/N 0441030
  JUNCTION

LED JUNCTION BOARD (8 FT.)
P/N 0454003-D







  SINGLE LED

DIGI-LIGHT LENS/WIRE (4 FT.)
P/N 0441026




QUAD

QUAD LEDS
P/N  0441036-4LED4






     AMP OZ

OZONATOR (AMP PLUG)
P/N 0470132-1  (240V)
P/N 0470133-1 (120V)









L100/L200, R100/R200 SPA CONTROL SYSTEM
              1998

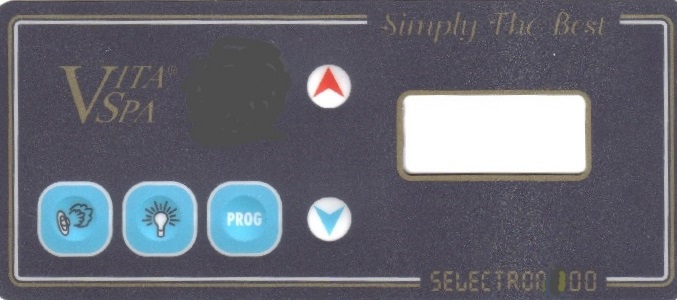

L100 BLK

L100 SPASIDE
P/N LX100SS
USE P/N 0460085

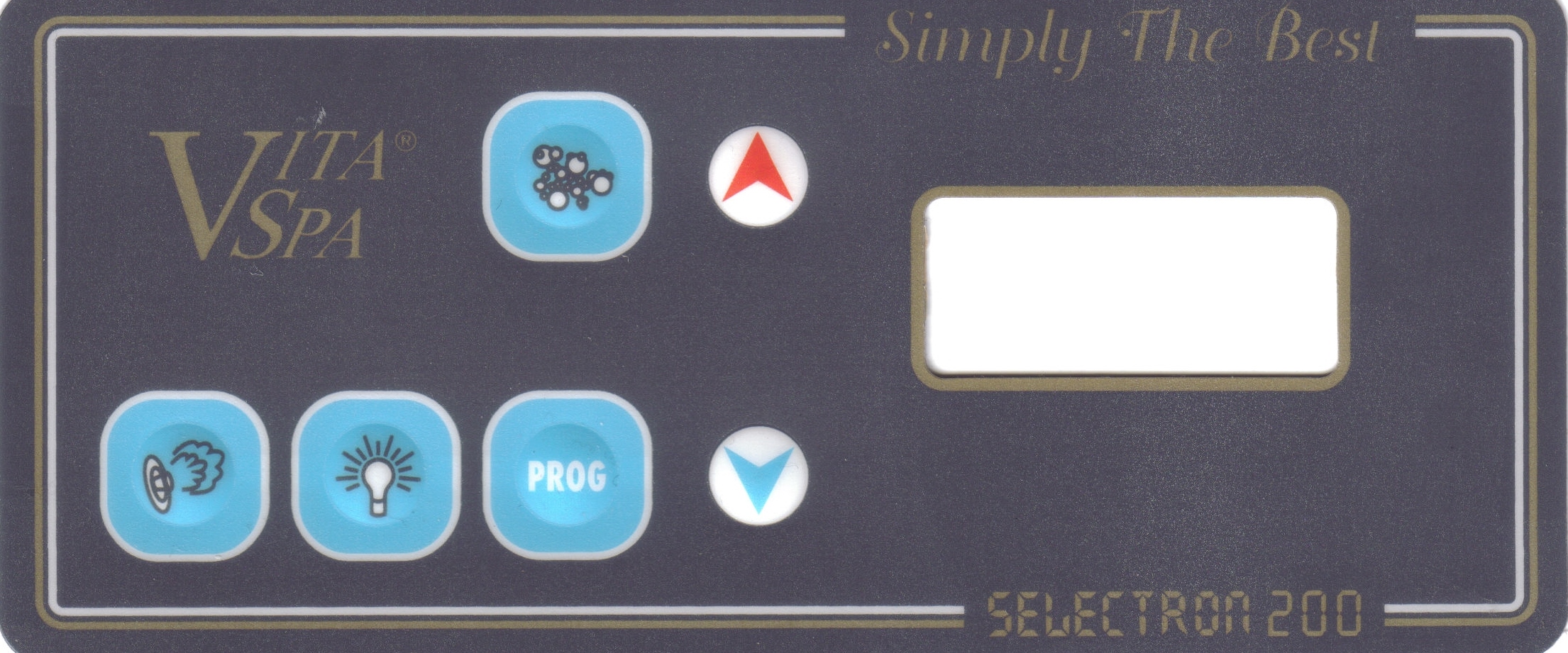

BLK 200

L200 SPASIDE
P/N LXR200SS
USE P/N 0460086

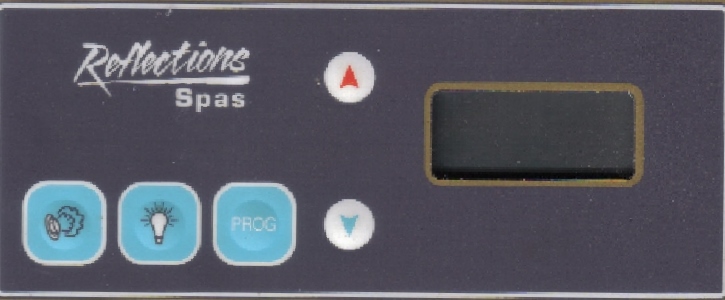

L100R

L100 REFLECTIONS SPASIDE
P/N LXR100SS
USE P/N 0460085

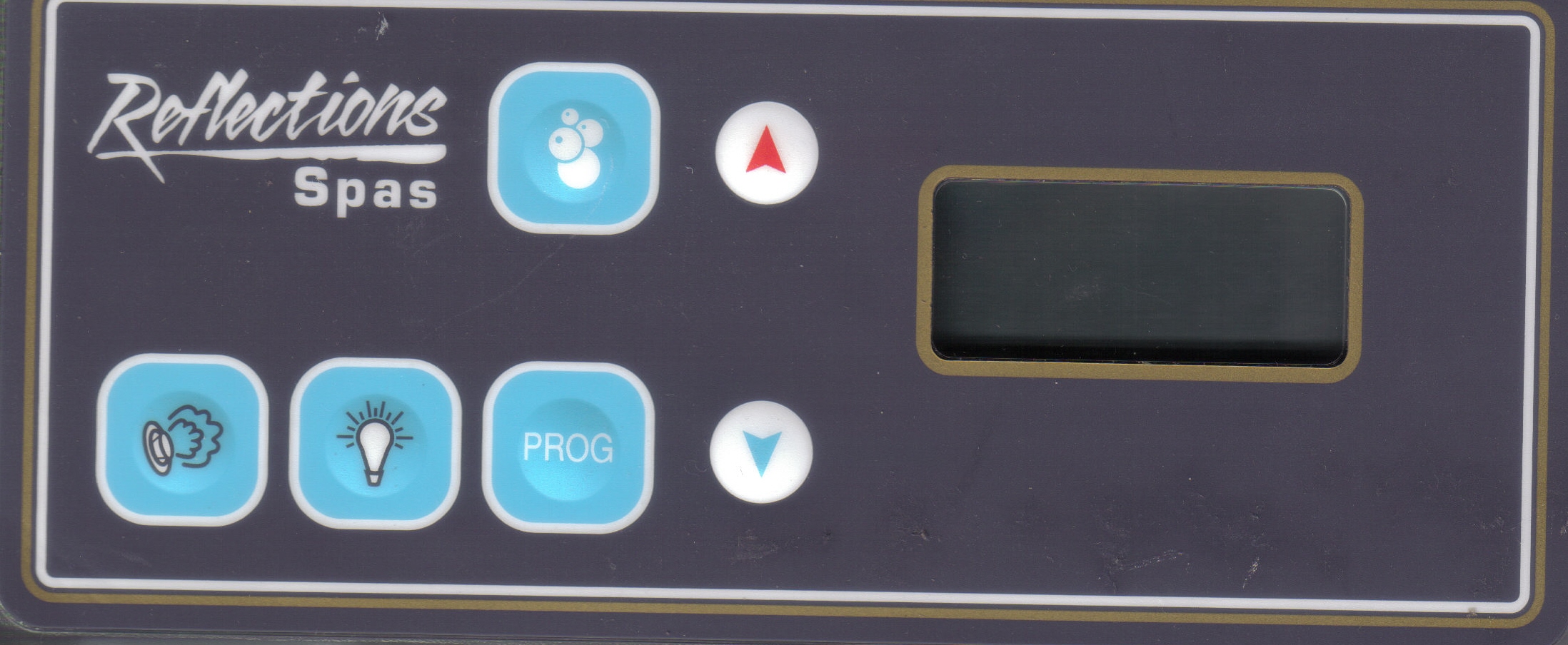

L200R

L200 REFLECTIONS SPASIDE
P/N LXR200SS
USE P/N 0460086

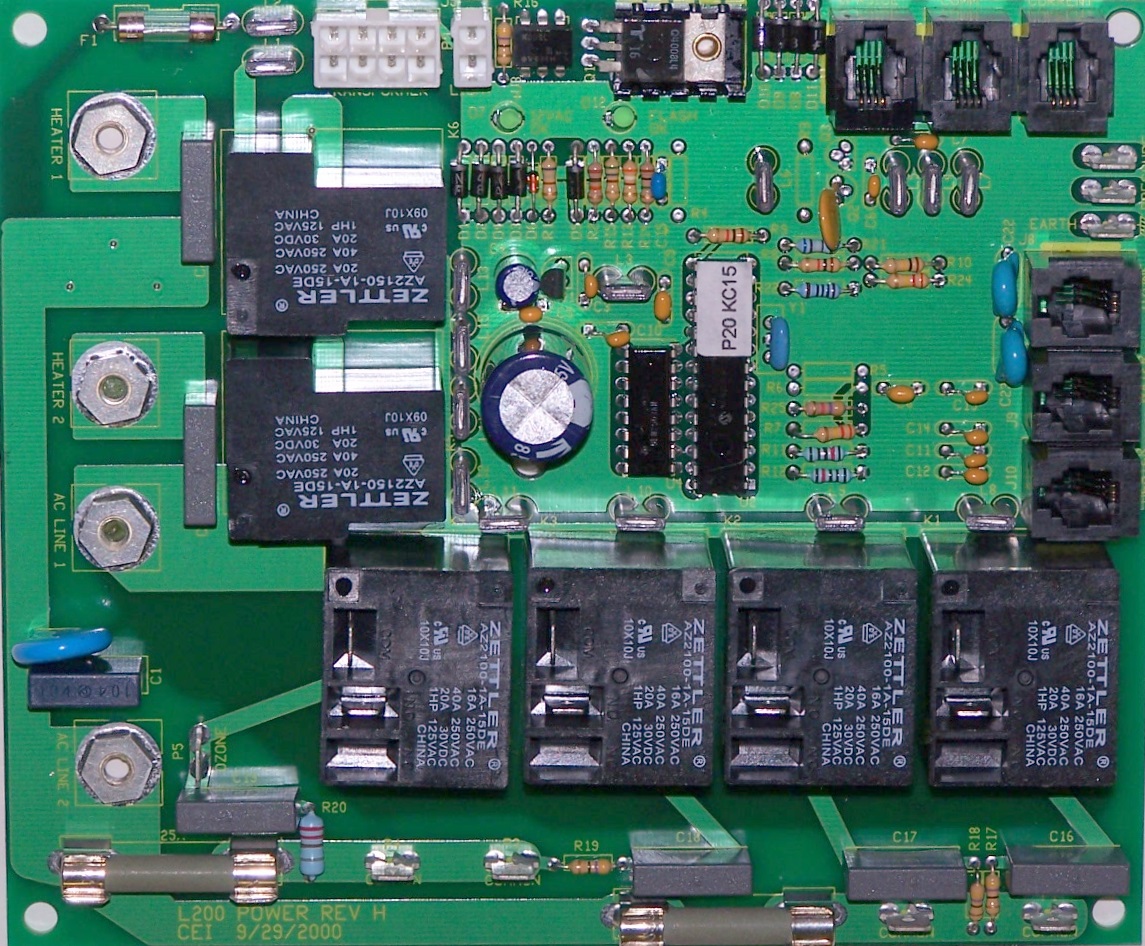

                                             L200 PB

                 L100/L200 CIRCUIT BOARD (U-PACK)
P/N 0460083



500 HS

HEATER SENSOR (2 FT.)
P/N 0451126
WATER SENSOR
WATER SENSOR (7 FT.)
P/N LX-LW500






        400 TRANS

 L500 TRANSFORMER (4-PIN)
P/N LX-LT500  (240V)
P/N LX-LT501  (120V)








L100/L200, R100/R200 SPA CONTROL SYSTEM
1999-2002

L100

L100 SPASIDE
P/N 0460085

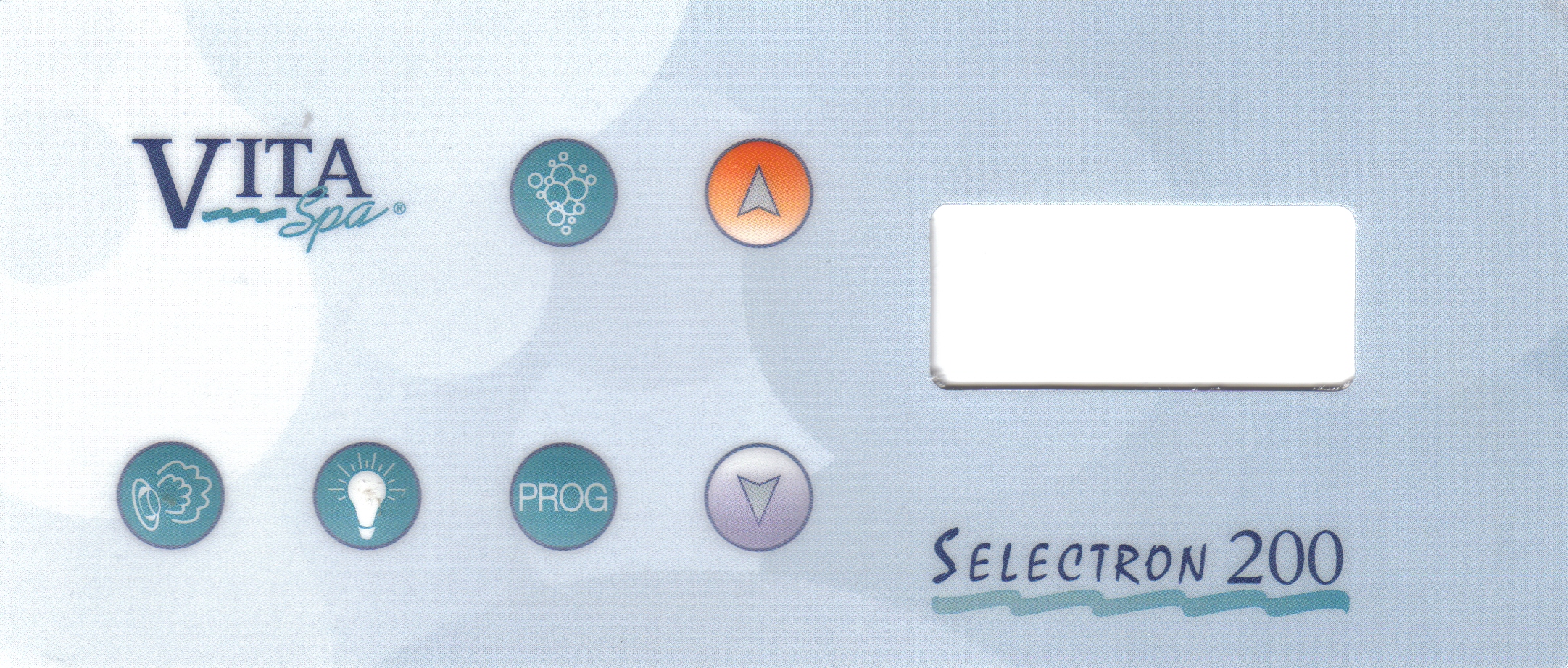

BLUE LM200

L200 SPASIDE
P/N 0460086
BLACK 100R

L100 REFLECTIONS SPASIDE
P/N LXR100SS
USE P/N 0460085		BLACK 200R

L200 REFLECTIONS SPASIDE
P/N LXR200SS
USE P/N 0460086


                                   L200 PB

       L100/L200 CIRCUIT BOARD (U-PACK)
P/N 0460083




500 HS

HEATER SENSOR (2 FT.)
P/N 0451126
WATER SENSOR
WATER SENSOR (7 FT.)
P/N LX-LW500


             400 TRANS

 L500 TRANSFORMER (4-PIN)
P/N LX-LT500  (240V)
P/N LX-LT501  (120V)
8 TO 4


4 PIN TRANSFORMER TO
8 PIN BOARD ADAPTOR
P/N 0442207
8 PIN XFORMER


L500 TRANSFORMER (8 PIN)
P/N 0442204, USE P/N 0442206  (240V)
P/N 0442203, USEP/N 0442205  (120V)

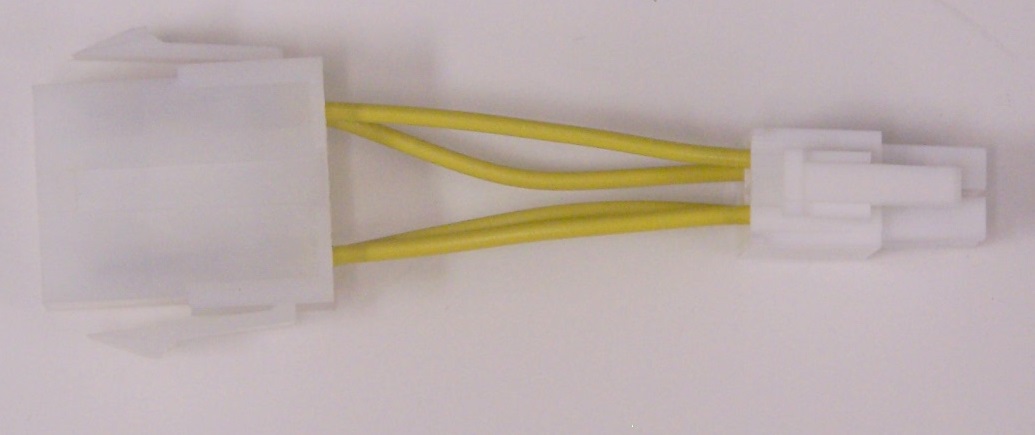

4 TO 8

8 PIN TRANSFORMER TO
4 PIN BOARD ADAPTOR
P/N 0442208
                                                L100/L200, R100/R200 SPA CONTROL SYSTEM
                                                                                                                                       2003-2006


DISC200BLOWER

DISC 200 SPASIDE
P/N 0460122-5



DICSREF

DISC 200 REFLECTIONS SPASIDE
P/N 0460123-05


COMBO

COMBO CIRCUIT BOARD
 P/N 0460100
USE P/N 0460127











8 PIN XFORMER

L500 TRANSFORMER (8 PIN)
P/N 0442206  (240V)
P/N 0442205  (120V)








 500 HS

HEATER SENSOR (2 FT.)
P/N 0451126






WATER SENSOR

WATER SENSOR (7 FT.)
  P/N LX-LW500




CURRENT

CURRENT SENSOR
P/N 0460088



  ORIG STEREO BOARD

STEREO BOARD
P/N 0453132


  FIRST STEREO XFORM

STEREO TRANSFORMER (10A)
P/N 0453133






 ANT

STEREO ANTENNA
P/N 0453135

DIGI BOARD

DIGI LIGHT BOARD II
P/N 0451155

ORIG UNDER

           SPECTRA-GLO
              P/N 0441015



SINGLE LED

DIGI LIGHT LENS/WIRE
P/N 0441026

                                                  2005OZ

OZONATOR (J&J MINI PLUG)
P/N 0470129-1 (240V)
P/N 0470130-1 (120V)








S100/S200 SPA CONTROL SYSTEM
2007

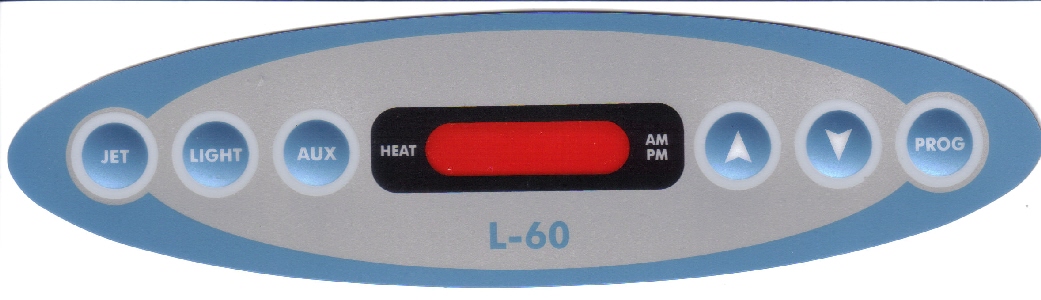

            L60
L-60 SPASIDE (ICS)
P/N 0460132-V05
USE P/N 0454009-L05D


CONTROL

CONTROL CARD (ICS)
P/N 0460133-CTRL
          USE P/N 0454002-D

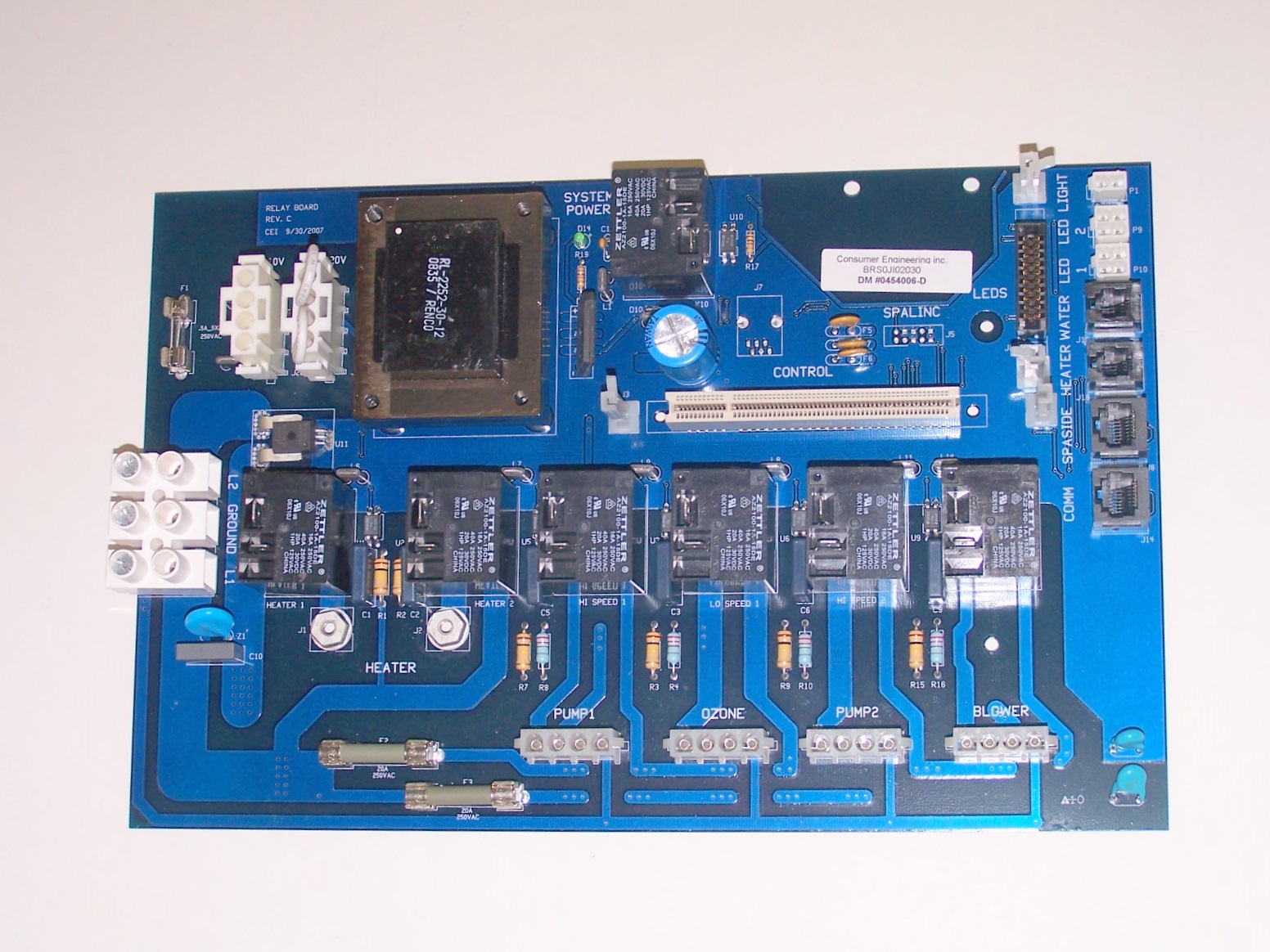

SBOARD


CIRCUIT BOARD  S-MODEL (ICS)
P/N 046134-RYS
USE P/N 0454006-D






8 PIN XFORMER

L500 TRANSFORMER (8 PIN)
P/N 0442206  (240V)
P/N 0442205  (120V)


 500 HS

HEATER SENSOR (2 FT.)
P/N 0451126


WATER SENSOR

WATER SENSOR (7 FT.)
  P/N LX-LW500





ICS UNDER

MAIN LIGHT (2 IN.)
P/N 0441030







SINGLE LED

DIGI-LIGHT LENS/WIRE (4 FT.)
P/N 0441026







SINGLE LED

DIGI-LIGHT LENS/WIRE (6 FT.)
P/N 0441026- 6







     07LED

DIGI-LIGHT CARD
P/N 0451158

     AMP OZ

OZONATOR (AMP PLUG)
P/N 0470132-1  (240V)
P/N 0470133-1 (120V)








                                                       S100/S200 SPA CONTROL SYSTEM
                                                                             2008-2009


         L60
L-60 SPASIDE (ICS)
P/N 0460132-V05
USE P/N 0454009-L05D






CONTROL

CONTROL CARD (ICS)
 P/N 0454002-D



SBOARD


CIRCUIT BOARD  S-MODEL (ICS)
P/N 046134-RYS
USE P/N 0454006-D








 8 PIN XFORMER

L500 TRANSFORMER (8 PIN)
P/N 0442206  (240V)
P/N 0442205  (120V)




 500 HS

HEATER SENSOR (2 FT.)
P/N 0451126



WATER SENSOR

WATER SENSOR (7 FT.)
  P/N LX-LW500

ICS UNDER

MAIN LIGHT (2 IN.)
P/N 0441035
     SINGLE LED

DIGI-LIGHT LENS/WIRE  (4 FT.)
P/N 0441026


        08 LED CARD

DIGI-LIGHT CARD
P/N 0454004-D
  JUNCTION

LED JUNCTION BOARD (8 FT.)
P/N 0454003-D



QUAD

QUAD LEDS
P/N  0441036-4LED4

     AMP OZ

OZONATOR (AMP PLUG)
P/N 0470132-1  (240V)
P/N 0470133-1 (120V)









 LD15 DUET/ECO
1999-2009

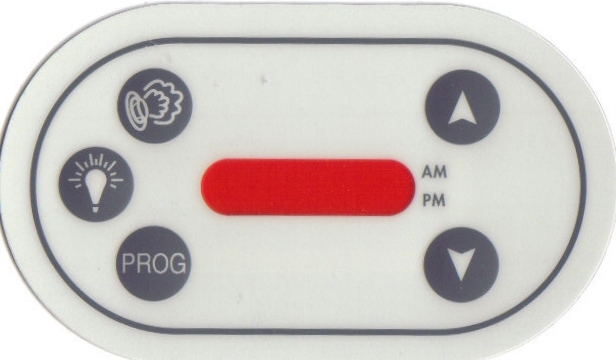

        DUETSS

DUET SPASIDE
P/N 0451127

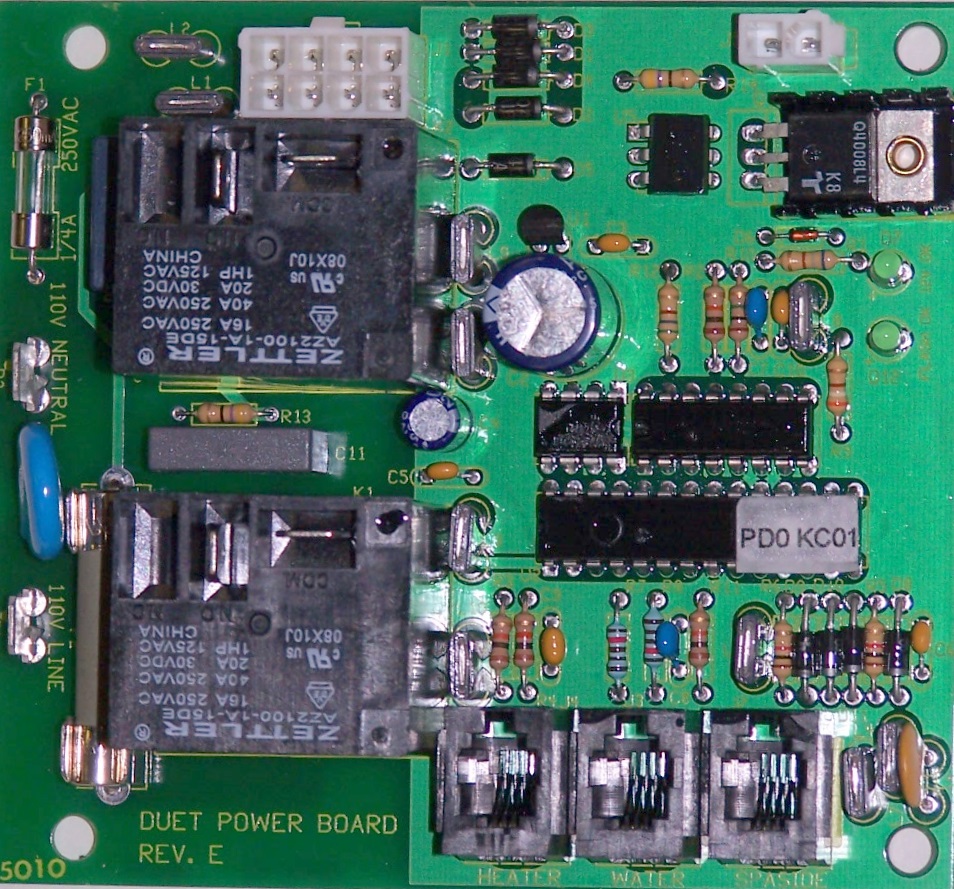

DUET PB

DUET CIRCUIT BOARD
P/N 0451206

 500 HS

ECO SENSOR (2 FT.)
P/N 0451126
WATER SENSOR

DUET SENSOR (7 FT.)
  P/N LX-LW500

   400 TRANS

 L500 TRANSFORMER (4-PIN)
P/N LX-LT500  (240V)
P/N LX-LT501  (120V)


8 TO 4

4 PIN TRANSFORMER TO
8 PIN BOARD ADAPTOR
P/N 0442207
8 PIN XFORMER


L500 TRANSFORMER (8 PIN)
P/N 0442204, USE P/N 0442206  (240V)
P/N 0442203, USE P/N 0442205  (120V)


4 TO 8

8 PIN TRANSFORMER TO
4 PIN BOARD ADAPTOR
P/N 0442208

2005OZ

OZONATOR (J&J MINI PLUG)
P/N 0470129-1 (240V)
P/N 0470130-1 (120V)










         VOYAGER, VOYAGER II, VOYAGER III
1999-2009

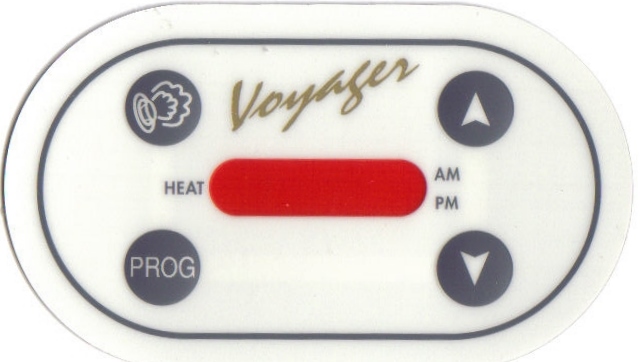

       VOYAGERSS
VOYAGER SPASIDE
P/N 0451105

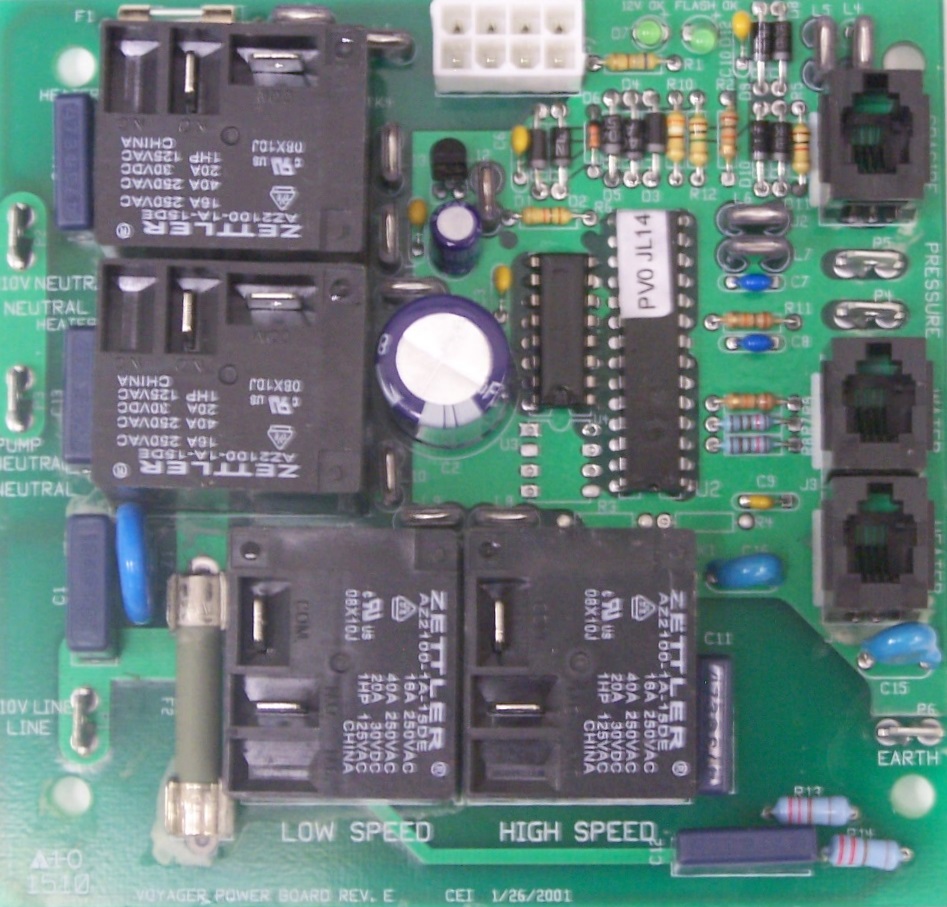

VOYAGER PB

VOYAGER CIRCUIT BOARD
P/N 0451104
 500 HS

HEATER SENSOR (2 FT.)
P/N 0451126
 500 HS

WATER SENSOR (2 FT.)
P/N 0451126

   400 TRANS

 L500 TRANSFORMER (4-PIN)
P/N LX-LT500  (240V)
P/N LX-LT501  (120V)


8 TO 4

4 PIN TRANSFORMER TO
8 PIN BOARD ADAPTOR
P/N 0442207
8 PIN XFORMER


L500 TRANSFORMER (8 PIN)
P/N 0442204, USE P/N 0442206  (240V)
P/N 0442203, USE P/N 0442205  (120V)


4 TO 8

8 PIN TRANSFORMER TO
4 PIN BOARD ADAPTOR
P/N 0442208











UNIVERSAL SPA CONTROL SYSTEM
2000-2009

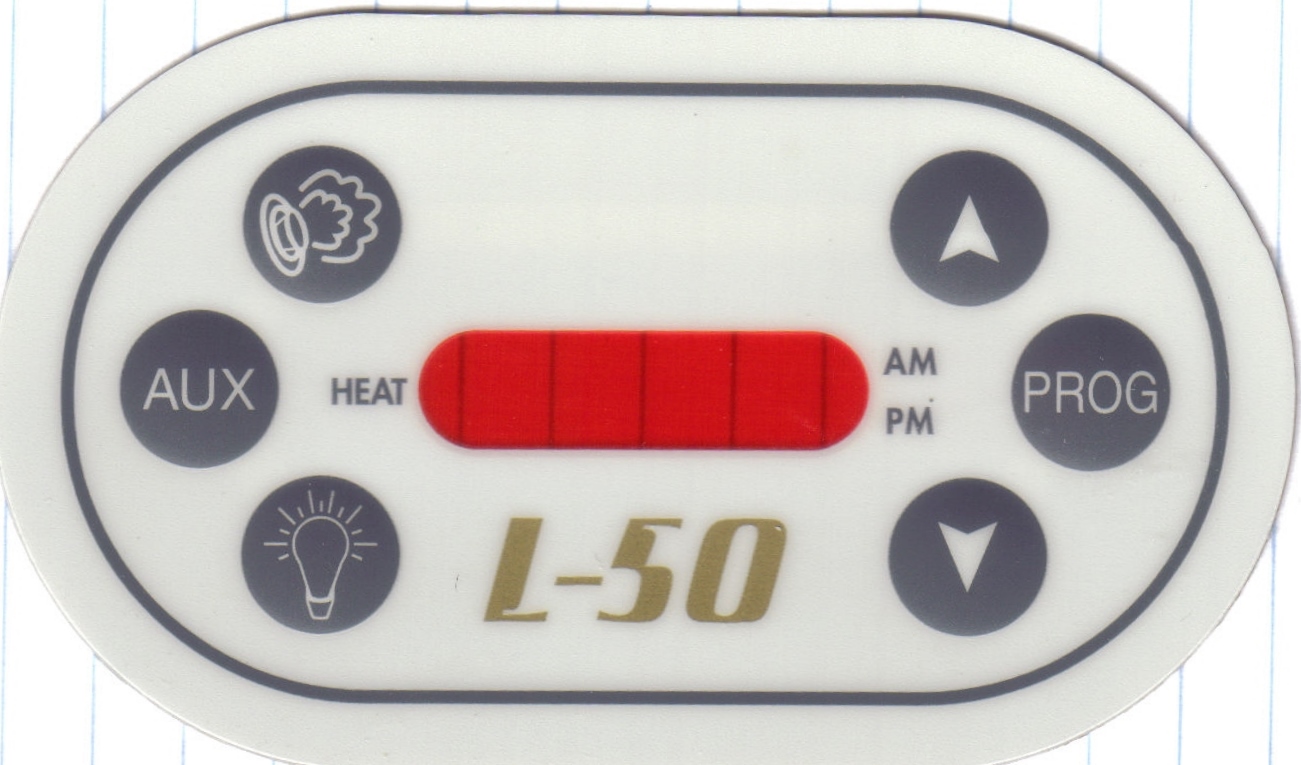

                  L50

UNIVERSAL SPASIDE (L50)
P/N 0460098

                                                L200 PB

                 L100/L200 CIRCUIT BOARD (U-PACK)
P/N 0460083



8 PIN XFORMER


L500 TRANSFORMER (8 PIN)
P/N 0442204, USE P/N 0442206  (240V)
P/N 0442203, USE P/N 0442205  (120V)


 500 HS

WATER SENSOR (2 FT.)
P/N 0451126


 500 HS

HEATER SENSOR (2 FT.)
P/N 0451126

2005OZ


OZONATOR (J&J MINI PLUG)
P/N 0470129-1 (240V)
P/N 0470130-1 (120V)
